In Stock
Take a look at what we currently have available in stock and ready to go.

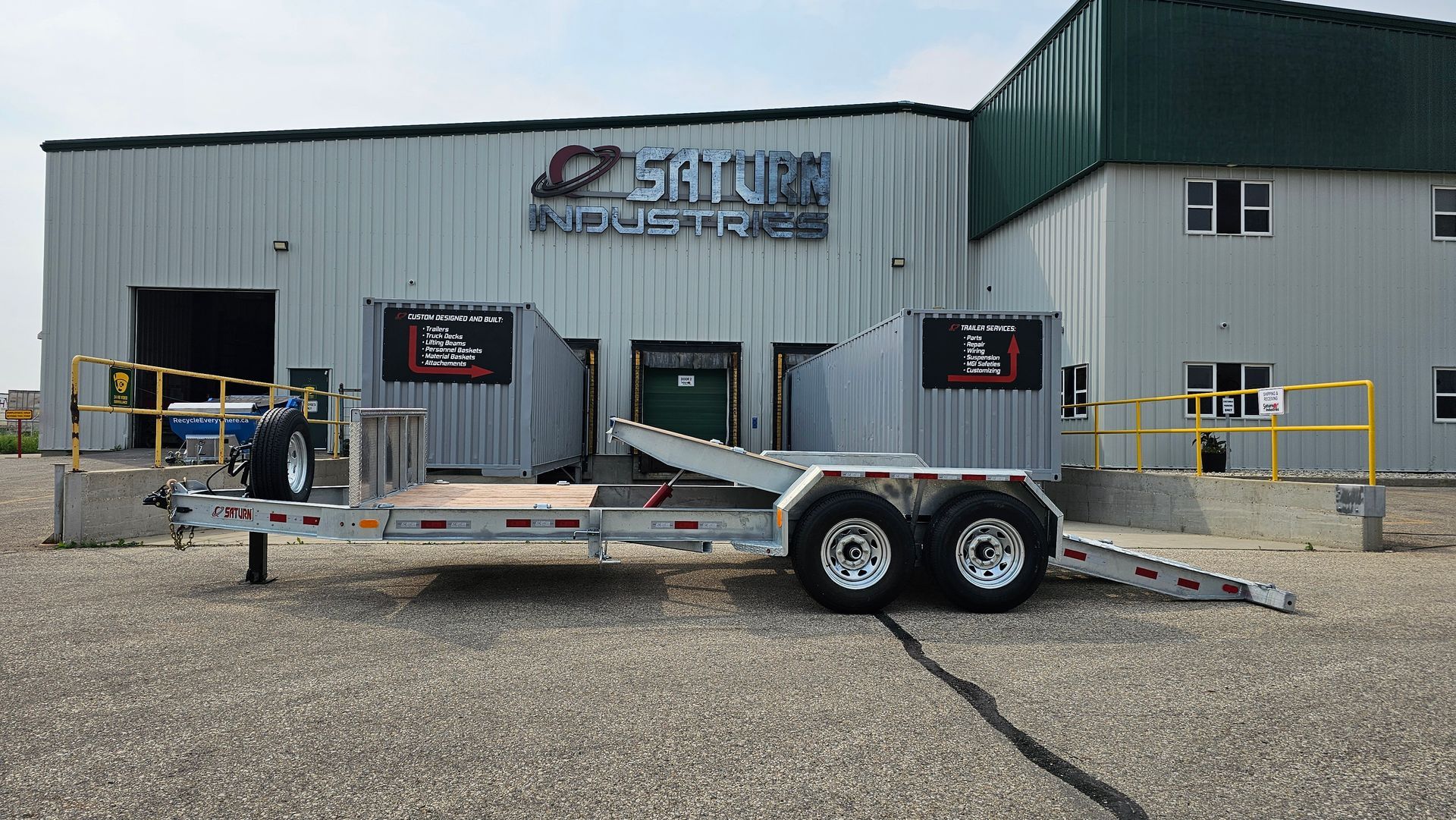

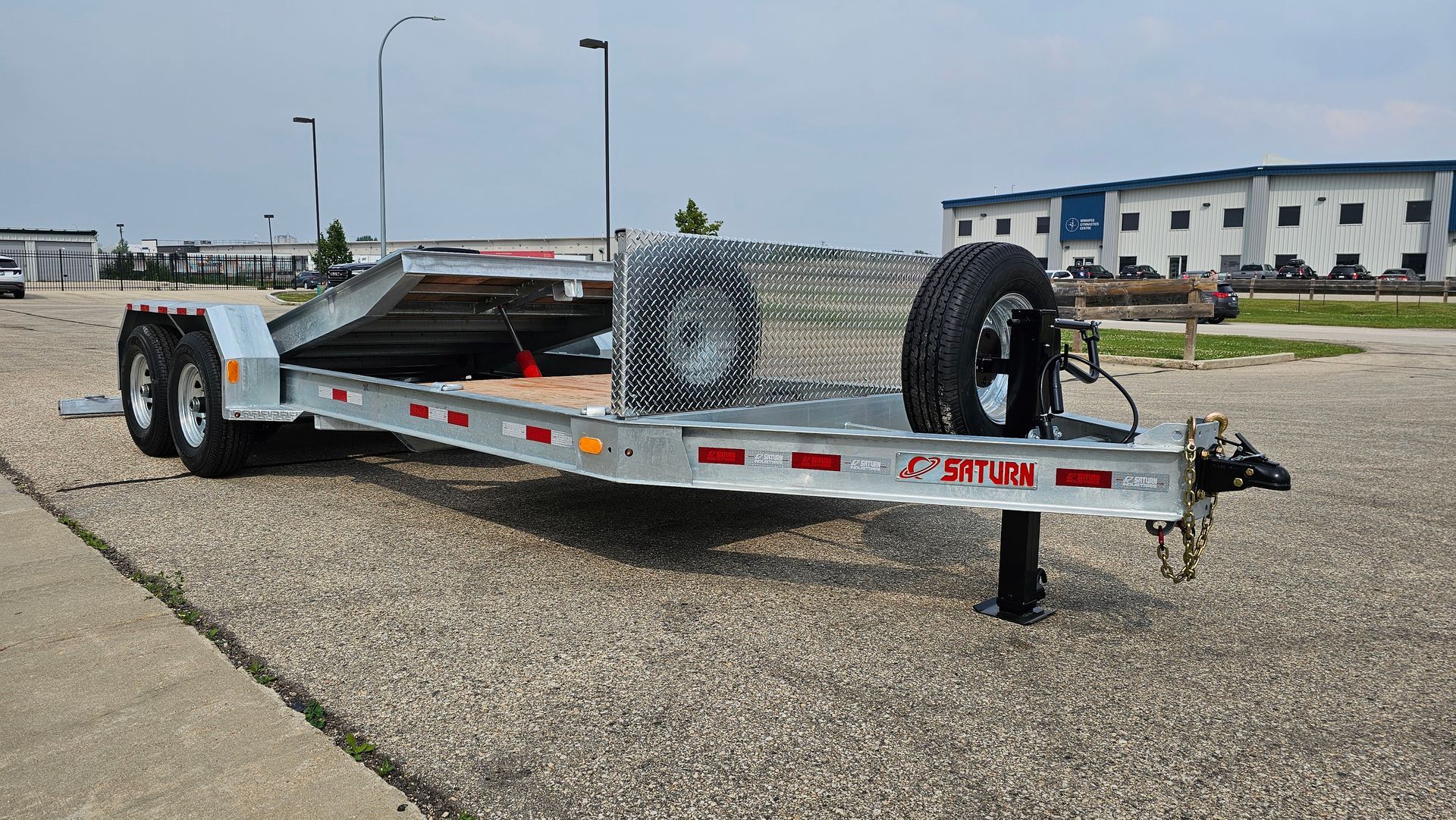

2025 Equipment Tilt Trailer: 16’ Tilt + 4.5’ fixed
- TILT DECK LENGTH: 16’
- FIXED DECK LENGTH: 4.5’
- OVERALL LENGTH: 26’
- DECK WIDTH: 82”
- OVERALL WIDTH: 8’6”
- DECK HEIGHT: 23”
- 8” I-BEAM MAIN & TILT FRAMES
- 3” HIGH TENSILE ULTRA-LITE I-BEAM CROSS MEMBERS @ 16” O/C
- 2 x 10 FIR PLANK DECK
- FENDER STEPS BOTH SIDES
- 15K DROP LEG LANDING GEAR
- HYDRAULIC CUSHION CYLINDER
- 2 - 7K DROP AXLES C/W ELEC. BRAKES ON BOTH AXLES
- SLIPPER SPRING SUSPENSION
- 4 - 235/80R16, 10-PLY TIRES ON 8-BOLT GALVANIZED STEEL WHEELS
- SPARE TIRE MOUNT
- SELF-CLEANING TRACTION APPROACH
- 12 FRAME MOUNTED D-RING TIE DOWNS
- 2-5/16” FACE-MOUNT BALL COUPLER ON ADJUSTABLE FACE MOUNT
- GRADE 70 SAFETY CHAINS & HOOKS
- SEALED L.E.D. LIGHTS & WIRING
- 7 WAY RV STYLE TRAILER PLUG
- HOT DIP GALVANIZED FINISH
- Included option items:
- Spare tire & wheel
- 24” aluminum stone guard

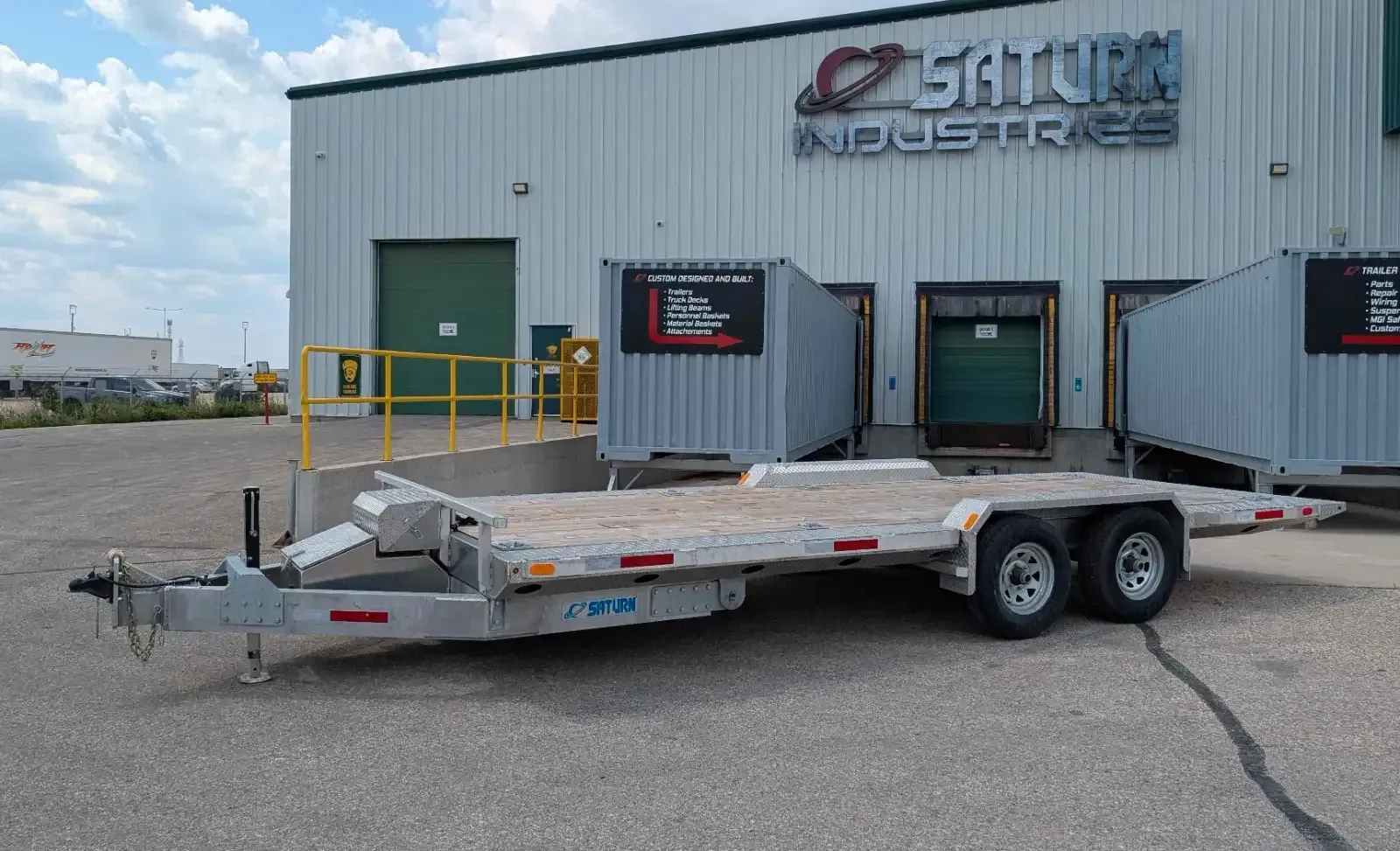

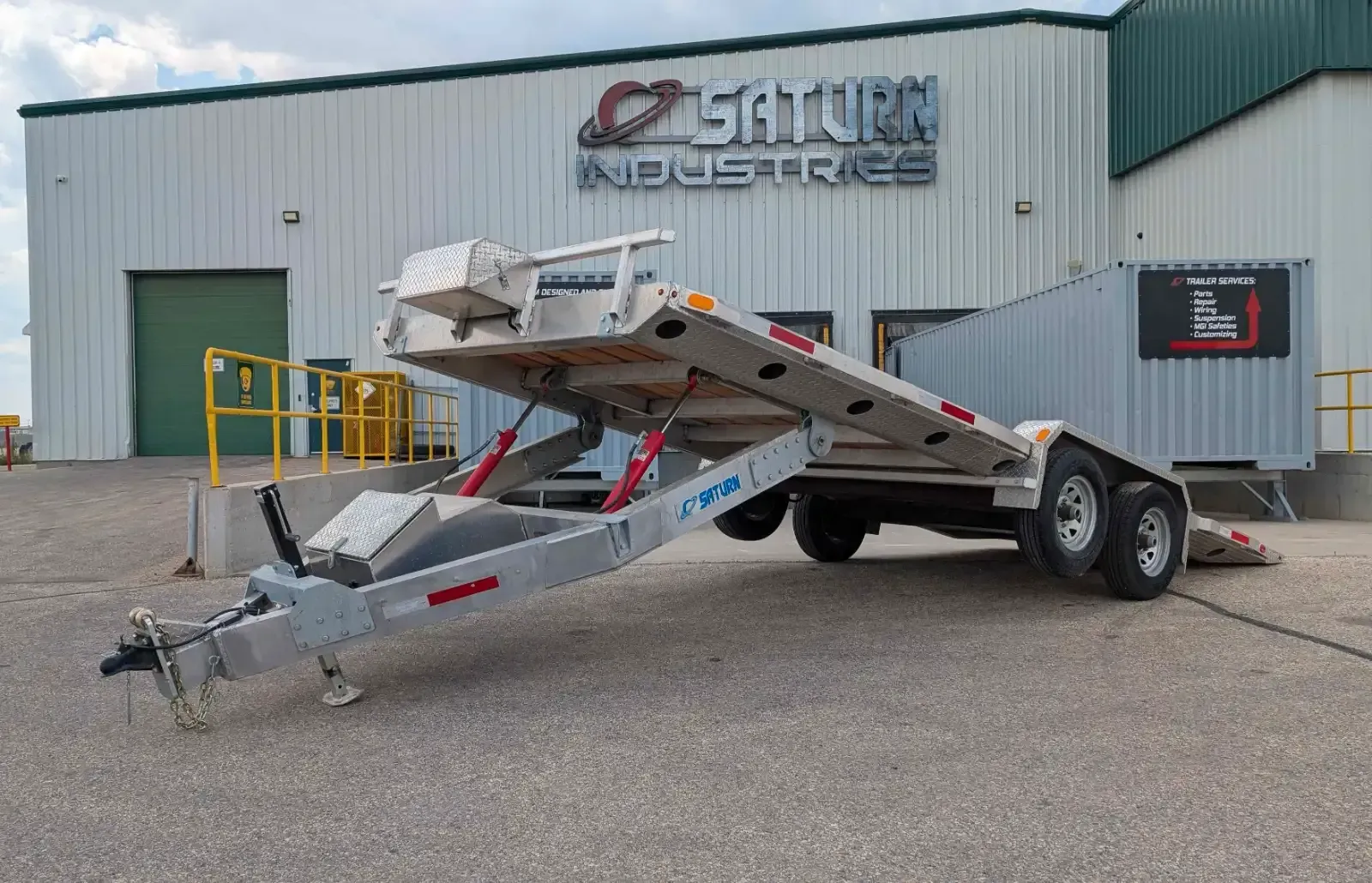

2025 20' Hydraulic Tilt Trailer
- • TILT DECK LENGTH: 20’
- • OVERALL LENGTH: 25’6”
- • DECK WIDTH BETWEEN FENDERS: 82”
- • OVERALL DECK WIDTH: 8’
- • OVERALL WIDTH: 8’6”
- • 8” ALUMINUM CHANNEL MAIN FRAME
- • 4” ALUMINUM CHANNEL CROSS SILLS @ 24” O/C
- • 2 x 10 FIR PLANK DECK
- • REMOVABLE ALUMINUM CHECKER PLATE FENDERS
- • 2 - 6K FLEXI-RIDE STRAIGHT AXLES C/W ELECTRIC BRAKES
- • 5 - 225/75R15 TIRES ON 6-BOLT RIMS
- • 10,000 LBS ELECTRIC WINCH MOUNTED AHEAD OF DECK w/WIRELESS CONTROL
- • STAKE POCKETS & RUB RAIL
- • 6” FRONT STOP RAIL
- • 2-5/16” BALL COUPLER ON ADJUSTABLE FACE MOUNT
- • GR. 70 SAFETY CHAINS AND HOOKS
- • RECESSED DECK MOUNTED TIE DOWNS
- • 12,000 Lbs. LOW-PROFILE DROP-LEG JACK
- • 12-VOLT HYDRAULIC POWER PACK IN LOCKABLE A-FRAME TOOL BOX
- • 2 - HYDRAULIC TILT CYLINDERS
- • SEALED L.E.D. LIGHTS & WIRING
- • 7-PIN RV STYLE TRAILER PLUG
